Arcoweld – ArcoBrite 2594 Stainless GTAW / GMAW
Solid wire, Gas Shielded

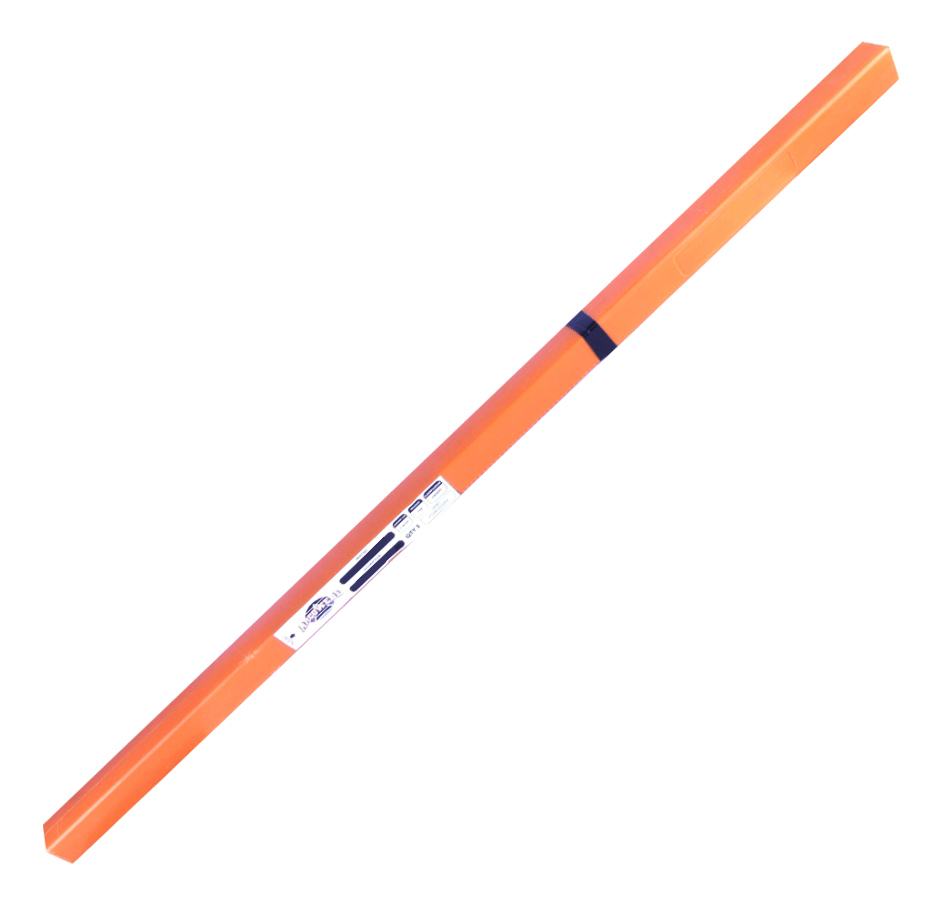

- TIG Diameter 1.6mm 5kg pack - Part No: ABR-2594-1.6-P5
- TIG Diameter 2.4mm 5kg pack - Part No: ABR-2594-2.4-P5

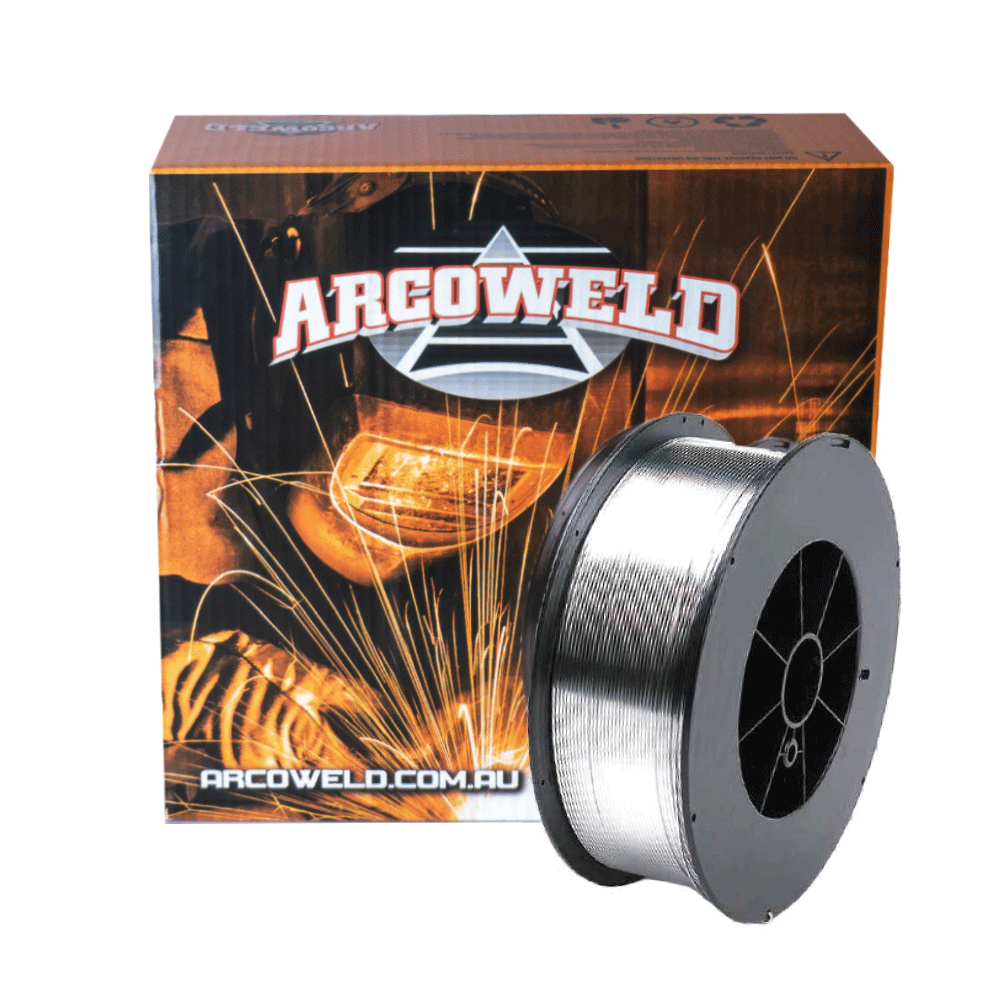

- MIG Diameter 0.9mm 15kg spool - Part No: ABR-2594-0.9-SP15
- MIG Diameter 1.2mm 15kg spool - Part No: ABR-2594-1.2-SP15
ArcoBrite is a Family of Exotic welding wires available in flux core & solid – FCAW/GMAW/GTAW
ArcoBrite 2594 is a solid GTAW / GMAW welding wire designed for welding of 2507 Superduplex type 25%Cr stainless steels, providing excellent corrosion resistance in chloride containing environments. Resistance to Pitting and Chloride induced stress corrosion cracking is maintained with Ferrite levels >40FN and PREN >40 typically.
Welding typically of materials EN 1.4410, ASTM S32750, SAF 2507 or Casting grade equivalents. Care should be taken with welding heat input & Interpass temperature to ensure correct microstructure is achieved with approximately 50/50 austenite and Ferrite matrix.
Recommended Welding Guidelines:
Interpass temperature; 150C maximum
Heat input; 1.1 kJ/mm on thin materials up to 1.75kJ/mm (Depending on material thickness).
GAS SHIELDING REQUIRED
