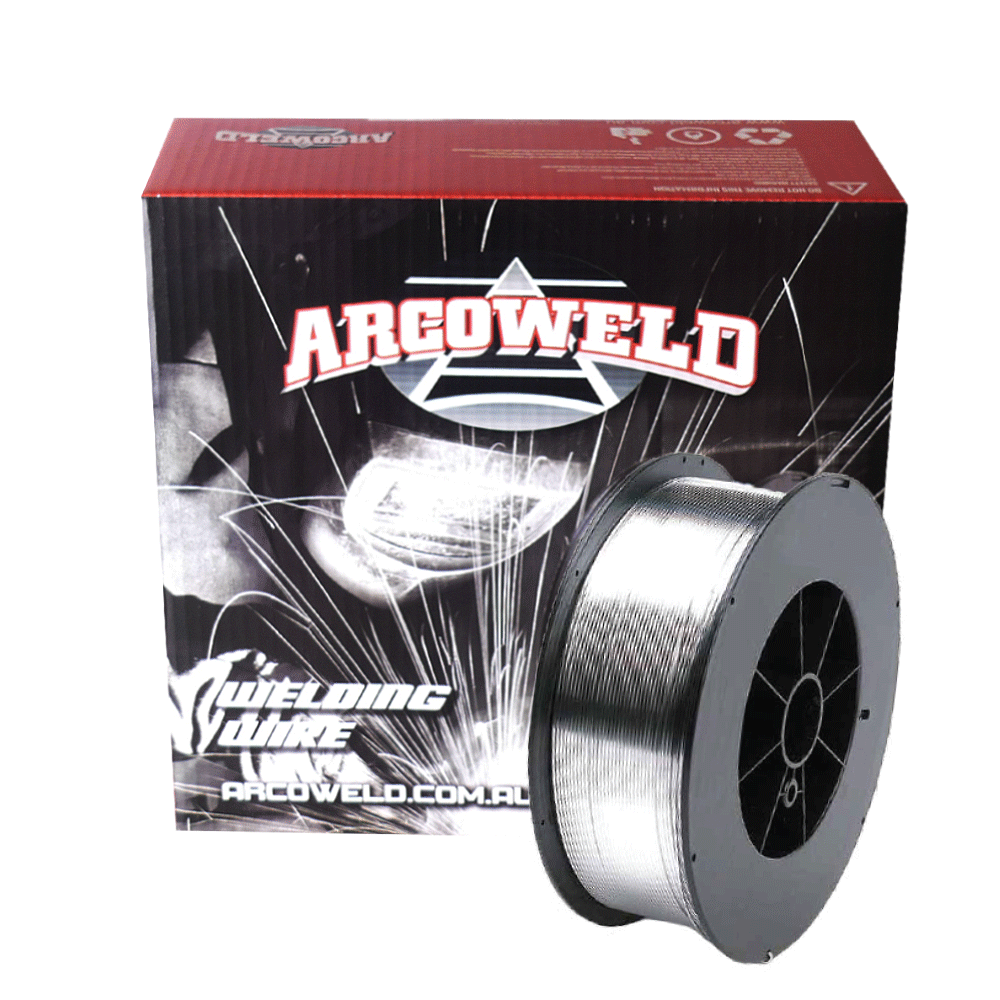

Arcoweld Solid Wire - ArcoShield ER110S-1 GTAW / GMAW
Arcoweld – ArcoShield ER110S-1 GTAW / GMAW
Solid Wire, Copper Coated, Gas Shielded
- TIG Diameter 1.6mm 5kg spool - Part No: ASH-ER110S1-1.6-P5
- TIG Diameter 2.4mm 5kg spool - Part No: ASH-ER110S1-2.4-P5
- MIG Diameter 0.9mm 15kg spool - Part No: ASH-ER110S1-0.9-SP15
- MIG Diameter 1.2mm 15kg spool - Part No: ASH-ER110S1-1.2-SP15
ArcoShield ER110S-1 is a is a copper coated low alloy solid wire for all positional welding of high strength Q&T steels requiring as-welded tensile strength up to 800N/mm2 (110 ksi min) with good low-temperature toughness. Used DC positive, with Argon/5-25% CO2 shielding gas, deposits with good appearance, penetration and low spatter loss can be achieved.
Note: Vanadium (V) is not a deliberate addition. This has a beneficial effect in that the mechanical toughness or impact properties will be maintained in both the as welded and stress relieved condition - no detrimental effect of Post Weld Heat Treatment (PWHT) is to be expected.
Tig available in 1.6 / 2.4mm x 5kg.
GAS SHIELDING REQUIRED
|Unit Of Measure||ea|
