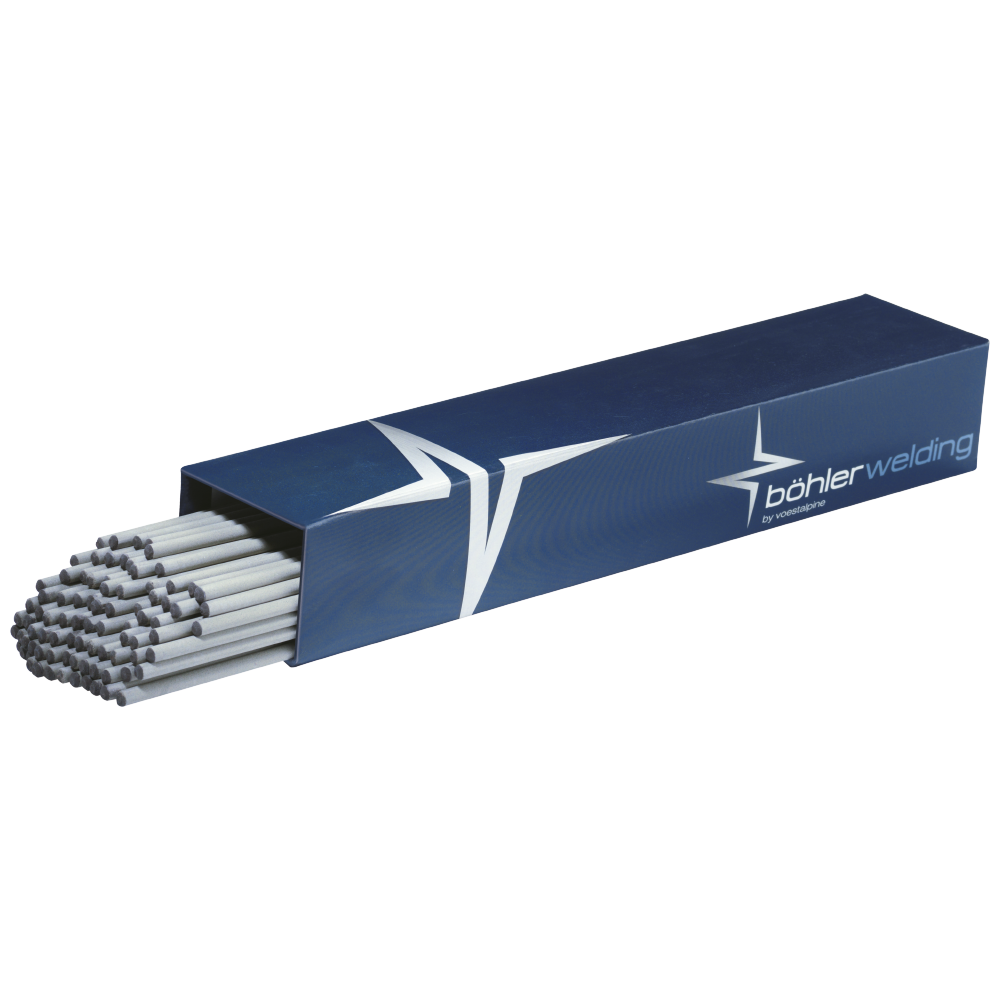

Bohler Stick Electrode - Fox S EV Pipe-1 MMAW
Bohler Welding – Fox S EV Pipe-1 MMAW
Basic stick electrode for vertical-up welding, pipe welding
- Diameter 2.5mm 5kg carton - Part No: BOH-70161H4-2.5-82913
- Diameter 3.2mm 5kg carton - Part No: BOH-70161H4-3.2-82914
- Diameter 4.0mm 5kg carton - Part No: BOH-70161H4-4.0-83152
Bohler FOX EV PIPE is a basic coated electrode, suited for positional welding of root passes using DC ( – ) as well as for filler and cover passes of pipes, tubes, and plates on DC ( + ), or even AC. Good gap bridging ability together with easy slag removal ensures minimum grinding. Weld- metal toughness is available down to -45°C. BÖHLER FOX EV PIPE offers considerable time savings against AWS E7018 type electrodes when welding root passes due to increased travel speeds. Also the use of dia. 3.2 mm is possible for root passes in case of wall thicknesses of 8 mm and more.
Bohler FOX EV PIPE can be used in sour gas applications (HIC-Test acc. to NACE TM-02-84). Test values for SSC-test are available too.
P235GH, P265GH, P295GH, P235T1, P275T1, P235G2TH, P255G1TH, S255N-S420N1),
S255NL1-S420NL1, L290NB-L360NB, L290MB-L415MB, L450MB2)-L555MB2)
API Spec. 5L: A, B, X 42, X46, X52, X56, X60, X65-X802)
ASTM: A53 Gr. A-B, A106 Gr. A-C, A179, A192, A210 Gr. A-1
1) stress relieved up to S380N / S380NL1
2) only for root pass
|WIRE TYPE||STICK ELECTRODE|
|Unit Of Measure||ea|
