Bohler Stick Electrode - Thermanit Chromo 9 V Mod MMAW
Bohler Welding – Thermanit Chromo 9 V Mod MMAW
Stick electrode, basic coated, creep resistant

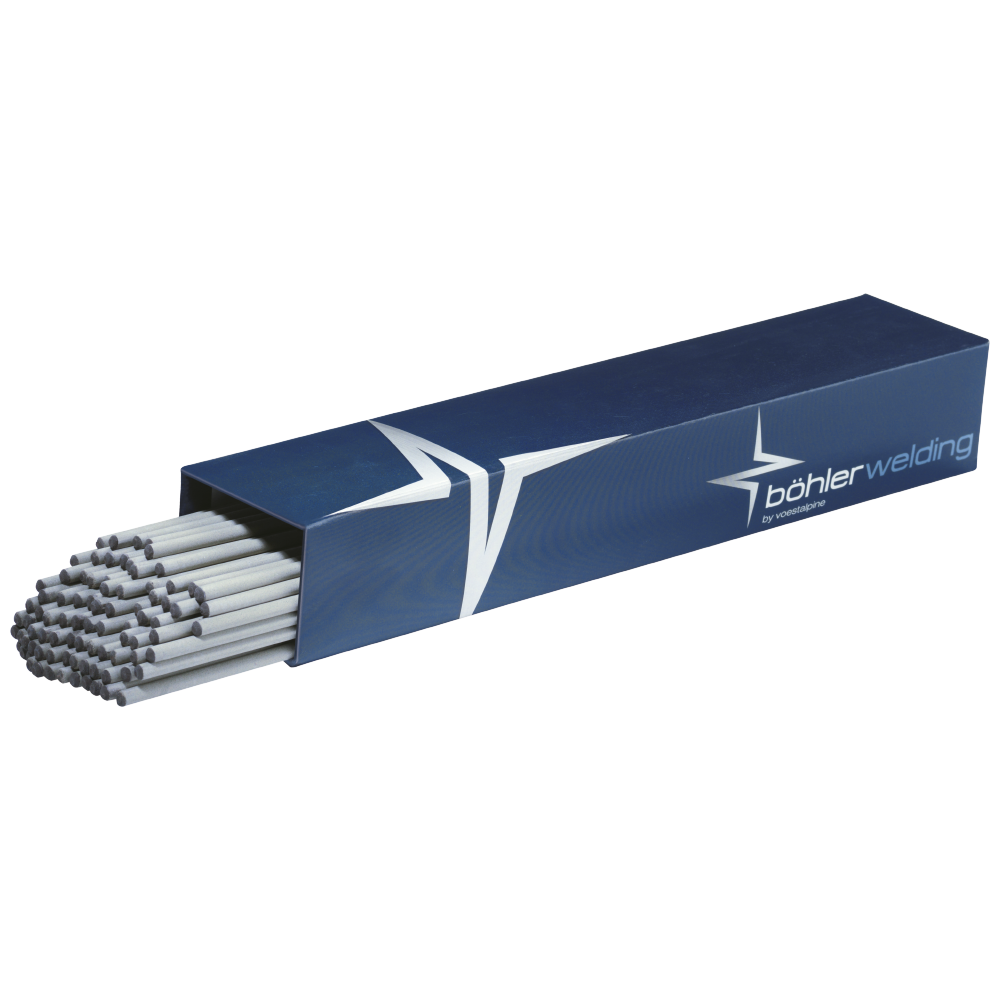

- Diameter 2.5mm 3.0kg carton - Part No: BOH-E9015B9H4R-2.5-80261
- Diameter 3.2mm 4.4kg carton - Part No: BOH-E9015B9H4R-3.2-80262
The basic coated CrMoVNB alloyed electrode is specially designed for welding of creep resistant tempered martensitic 9% Cr steels used for turbine and boiler fabrication in thermal power plants as well as in the chemical industry.
Thermanit Chromo 9 V Mod provides good welding characteristics in all positions except vertical down, a stable arc, low spattering, good slag detachability and excellent striking and re-striking properties.
The chemical composition is optimized in order to provide a high creep resistant and ductile weld metal and meets the requirement for restricted Mn + Ni content (≤ 1 wt. %). It is characterised by low hydrogen content and low level of trace elements. This electrode has a half-synthetic cover concept.
Modified 9Cr-1Mo steels like 1.4903, X10CrMoVNb9-1, GX12CrMoVNbN9-1, ASTM Grade 91
|WIRE TYPE||STICK ELECTRODE|
|Unit Of Measure||ea|
